HEAVY DUTY INDUSTRIAL FANS
CENTRIFUGAL FANS
Airfoil Single Wide
Wheels have aerodynamically shaped blades providing non-overloading, highly efficient performance for relatively clean air applications.
- Airstream/performance: Clean air applications, medium to high volume and low to medium pressure applications.
- Applications: Supply fans, forced draft (FD), induced draft (ID) fans, exhaust fans, reverse air, dryer fans, cooling air, general ventilation, high temp applications.
- Sizes 18-1/4” – 89” wheel diameter
- AMCA Class 2, 3 & 4
- Volume up to 315,000 CFM
- Pressure up to 26″ WG
- Temperature Range -30° to 800°F
- Arrangement 1, 3, 4, 4V, 7, 8, 9
- IAT model AFSW
Download Catalogue
Request Information
Backward Inclined Single Wide
Wheels have flat, backwardly inclined, single thickness blades. Non-overloading high efficiency design generates low to moderate pressures.
- Airstream/Performance: Clean air to light dust loading, low to high volume and low to medium pressure.
- Applications: Supply fans, forced draft, dust collector, baghouse, bin vent, exhaust fans, combustion air, reverse air, dryer fans, kiln and flue gas recirculation, fume hood and spray booths, undergrate, cooling air, balancing fans, general ventilation, process, corrosive and high temp applications.
- Sizes 12-1/4” – 98-1/4” Wheel Diameter
- AMCA Class 2, 3, 4 & 5
- Volume up to 445,000 CFM
- Pressure up to 28″ WG
- Temperature Range -30° to 800°F
- Arrangement 1, 3, 4, 4V, 7, 8, 9
- IAT Model BISW
Download Catalogue
Request Information
Pressure Blower
Shrouded optimized bladed design offers efficient and stable performance over a wide range of pressure and volume requirements. Inlet and outlet flanges are round for easy standard pipe duct connections.
- Airstream/Performance: Clean air to light duty dust loading, low to medium volume, medium to high pressure applications.
- Applications: Supply and exhaust fans, combustion air, distribution air, reverse air, cooler fans, pneumatic conveying, dust collector/baghouse exhaust fans, flue gas recirculation, general ventilation, process, corrosive and high temp applications.
- Sizes 14″ – 26″ Wheel Diameter
- Construction Class 60
- Volume Up to 10,250 CFM
- Pressure Up to 66″ WG
- Temperature Range -30° to 600°F
- Arrangement 1, 4, 4V, 8, 9, 10
- IAT Model PB
Download Catalogue
Request Information
General Purpose Backward Inclined
Economical, modular design allows for short lead times and a competitive price while offering similar performance to our BISW line up to AMCA Class 3.
- Airstream/performance: Clean air to light dust loading, low to high volume and low to medium pressure applications.
- Applications: Supply fans, forced draft, dust collector, baghouse, bin vent, exhaust fans, combustion air, reverse air, dryer fans, fume hood and spray booths, cooling air, balancing fans, general ventilation, process, corrosive and high temp applications.
- Sizes 12-1/4” – 36” Wheel Diameter
- AMCA Class 1, 2 & 3
- Volume up to 47,000 CFM
- Pressure up to 18.5″ WG
- Temperature Range -30° to 600°F
- Arrangement 1, 4, 4V, 8, 9, 10
- IAT Model GPBI
Download Catalogue
Request Information
(Radial Blade) Industrial Exhauster
Wheel with flat radial blades and flat back plate design prevent stringy or fibrous material from hanging up and wrapping around the blades, and are used for light to medium material handling applications.
- Airstream/performance: Radial open (paddle wheel), clean air to heavy material loading, low to high volume, low to medium pressure applications.
- Applications: Scrubber, cyclone fans, relay or booster fans, pneumatic conveying, classifier fans, material conveying fans, truck loading, chip fans, corrosive and high temp gas streams
- Sizes 12-1/4” – 57-1/2” wheel diameter
- Construction Class 15, 30 & 50
- Volume up to 92,000 CFM
- Pressure up to 45″ WG
- Temperature Range -30° to 1000°F
- Arrangement 1, 4, 4V, 8, 9
- IAT Model IRF
Download Catalogue
Request Information
(Paddle Wheel) Industrial Exhauster
Paddle wheel design centrifugal fans used for material handling applications where moderate pressure and CFM are required.
- Airstream/Performance: Radial open (paddle wheel), clean air to heavy material loading, low to high volume, low to medium pressure applications.
- Applications: Scrubber, cyclone fans, relay or booster fans, pneumatic conveying, classifier fans, material conveying fans, truck loading, chip fans, corrosive and high temp gas streams.
- Sizes 12-1/4” – 85-1/4” wheel diameter
- Construction Class 15, 30 & 50
- Volume up to 200,000 CFM
- Pressure up to 50″ WG
- Temperature Range -30° to 1000°F
- Arrangement 1, 8, 9 industrial fan
- IAT Model IRO
Download Catalogue
Request Information

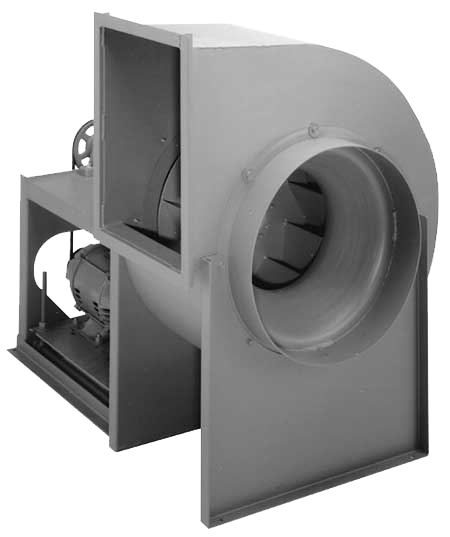

VSBC
Belt Drive Centrifugal Ventilating Set
Sizes: 12 – 36
CFM: 688 – 29,108
Static: Through 8.0″
- Licensed for Sound & Air Performance
- Available UL Standard 705 or 762 listing for Class I fans
- Backward inclined aluminium (Class I, sizes 12-27) or welded steel (Class I sizes 30-36 & all Class II) centrifugal blower wheel
- Large open motor compartment allows for quick and easy servicing and adjustment.
- Rugged, all-welded housing rotatable to 8 discharge positions
- Heavy duty pillow block bearings with minimum 200,000 hr life
- Deep spun inlet cone designed for maximum efficiency
Download Catalogue
Request Information

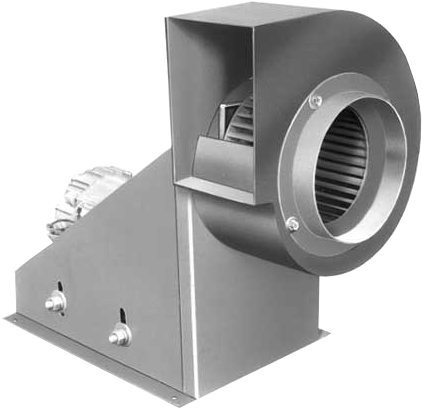

VSBCJ
Junior Belt Drive Centrifugal Ventilating Set
Sizes: 9 – 10
CFM: 261 – 1,959
Static: Through 5.0″
- Available UL Standard 705 or 762 listing
- Backward inclined, non-overloading centrifugal blower wheel
- Open support base allows for quick and easy servicing and adjustment to the motor and drives
- Rugged, all-welded housing rotatable to 8 discharge positions
- Variable pitch motor pulleys
Download Catalogue
Request Information

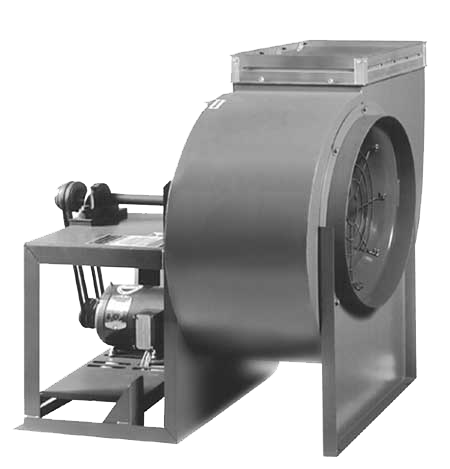

VSFC
Belt Drive Centrifugal Ventilating Set
Sizes: 12 – 36
CFM: 688 – 29,108
Static: Through 5.0″
- Licensed for Air Performance
- Forward curved riveted steel centrifugal blower wheel
- Large open motor compartment allows for quick and easy servicing and adjustment
- Rugged, all-welded housing rotatable to 8 discharge positions
- Heavy duty pillow block bearings with minimum 200,000 hr life
- Deep spun inlet cone designed for maximum efficiency
Download Catalogue
Request Information
Centaxia uses a variety of quality products produced by a number of established North American manufacturers. Please contact us for specific details for your application.
